100 kW - 500 kW
155 kW, 18 t, tractive effort 85 kN, ground speed 25 kph
1x HPV 105-02 M1R (propel drive)
1x HMF 105-02 (propel drive)
1x iCon (electronic control unit)
- Sensitive and precise machine control
- Quick and reproducible machine response
- Robust and durable
- Hydraulic or electro-proportional pump control
A harvesting machine which is reliably available throughout the entire harvesting season, which is built on robust technology and whose operation is intuitive and easy to learn, even for varying operators – in many places, this is exactly what is needed.

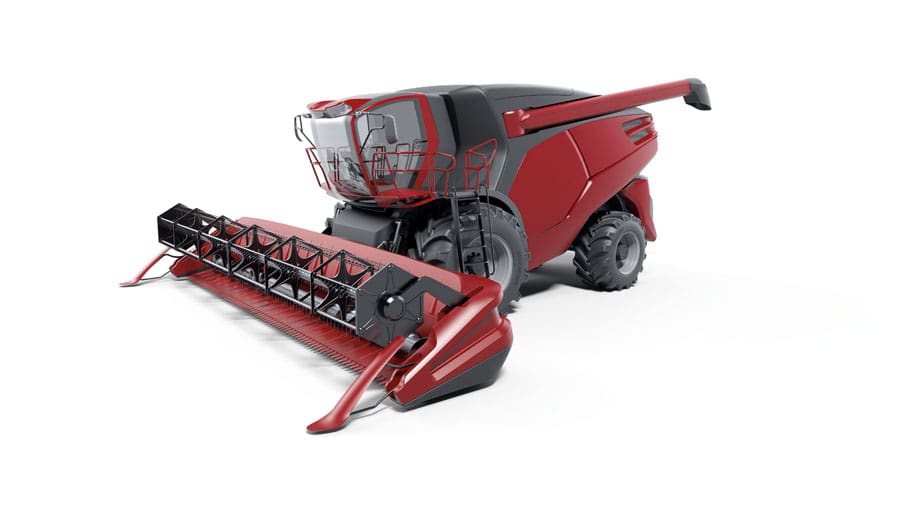

The design example shows such a combine harvester, driven by a 155 kW diesel engine with an HPV 105-02 pump with a mechanical hydraulic controller. It delivers oil to a fixed-displacement motor with 105 cc displacement, mounted to a 3-speed gearbox with varying gear ratios for harvesting, field travel and road travel.
A Bowden cable provides a mechanical link between the control lever in the operator's cabin and the controller of the variable displacement pump. The machine response is completely in the driver‘s hands. He can virtually ignore the load on the machine and the steepness of the terrain. Like all Linde Hydraulics controls, the M1R mechanical hydraulic control operates independently of the load. The same lever position produces the same machine response. The machine is operated intuitively.
